Kwikset Z-Wave Door Locks Integration Release Notes

Preface

For information on Z-Wave and ClareHome, see Installing Z-Wave with ClareHome Tech Bulletin (DOC ID 1162).

Notes

  • When installing Z-Wave devices, ensure that there is nothing inhibiting their signal. Z-Wave relies on radio signals. Metal or thick walls may limit their signal strength.
  • We recommend having 2 or more repeating Z-Wave devices that support beaming.

Introduction

Note: Kwikset 916 Z-Wave door lock may lose app synchronization and reflect the wrong door status. Manually locking/unlocking the door corrects the ClareHome app.

By installing the Kwikset door lock into a ClareHome control system, your customers can send commands using their Android or iOS devices to lock and unlock the deadbolt or lever, to check the lock status, and receive alerts when the door lock status changes.

When installing the door lock into your ClareHome project, no extra connection is necessary. Install the door lock according to the Kwikset documentation, and then connect it to the home Z-Wave network.

Installing the Kwikset door lock

We recommend adding batteries and pairing the door lock before installing it.

A qualified installation technician should install the Kwikset door lock. Refer to the documentation that came with the door lock for detailed installation instructions.

Notes

  • You must be within 6 feet of the controller for the lock to pair.
  • The door lock is configurable using the ClareHome app, the Clare Controls Install Assist app, and Fusion.

Pairing and removing the Kwikset in the apps

After installing the door lock, pair it.

To pair the door lock using ClareHome or Install Assist:

1. Access the Clare Controls Install Assist app, and then tap Add Devices.

Image 001

– or –

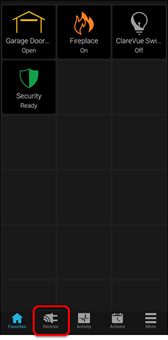

Access the ClareHome menu, and then tap Add/Edit Devices.

Image 002

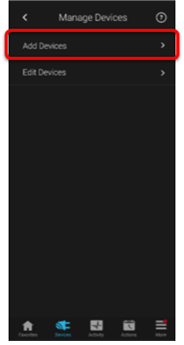

2. At the bottom of the screen, tap the plus icon.

Image 003

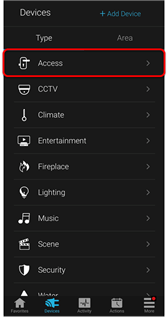

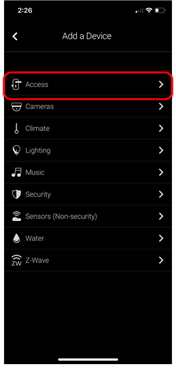

3. Tap Access.

Image 004

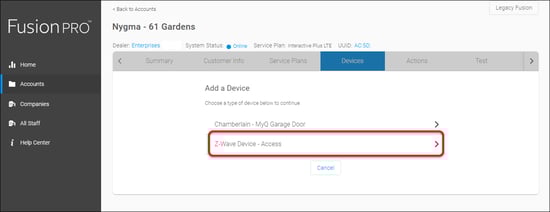

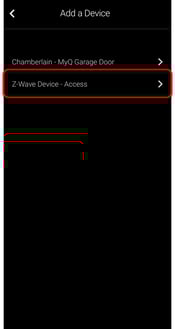

4. Tap Z-Wave Device - Access.

Image 005

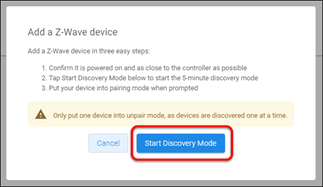

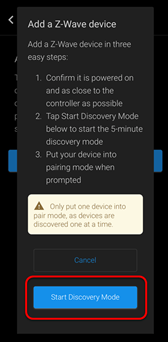

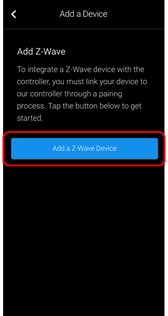

5. Tap Start Discovery Mode, and then pair the device as per the manufacturer’s instructions.

Image 006

Figure 1: Back view of the Kwikset Z-Wave button with the battery cover removed.

Image 007

(1) The Z-Wave button.

The LEDs next to the Z-Wave button will turn yellow and red, and then the programming LED flashes green indicating that the device has entered pairing mode. When the door lock is successfully paired, there will be a loud beep. It can take up to a minute for the device to pair.

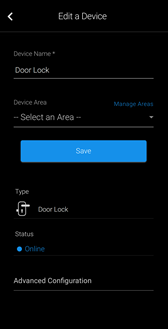

6. Enter a name for the door lock, and then select an area.

Image 008

7. Tap outside of the area drop-down and the door lock automatically saves.

Note: For scene, schedule, notification, and automation configuration, see ClareHome App Guide (DOC ID 1750).

To remove the door lock using ClareHome or Install Assist:

1. Access the Clare Controls Install Assist app, and then tap Add Devices.

Image 001

– or –

Access the ClareHome menu, and then tap Add/Edit Devices.

Image 002

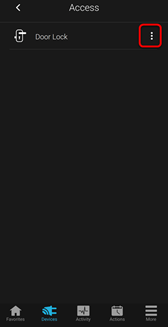

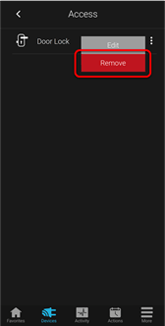

2. Tap the dots in the upper-right corner.

Image 009

3. Tap Unpair Z-Wave Device.

Image 010

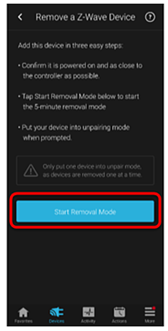

4. Tap Start Removal Mode, and then remove the device as per the manufacturer’s instructions.

Image 011

Note: Press and hold the same button used in pairing the device to remove the device.

Pairing and removing the lock in Fusion

Before installing the door lock, pair it.

To pair the door lock with Fusion:

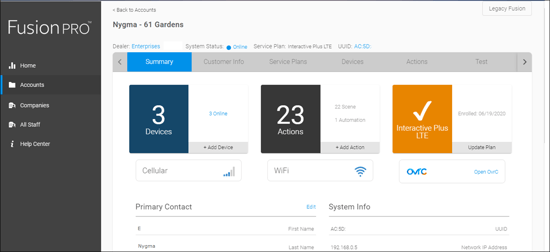

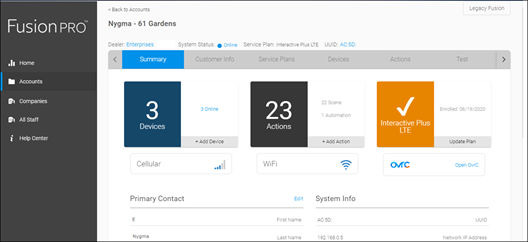

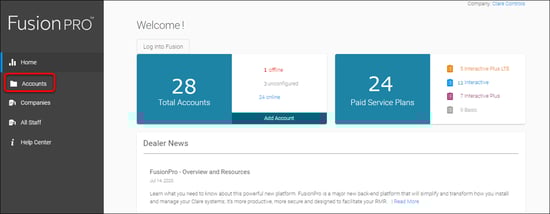

1. Access your project, and then click the Z-Wave Wizard icon.

Image 012

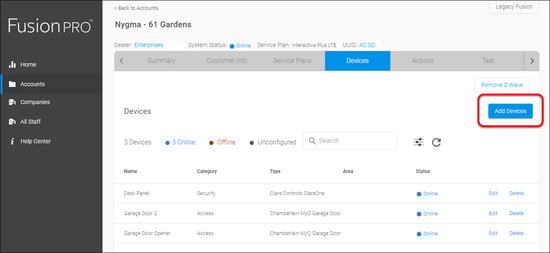

2. Click on Z-Wave Devices.

Image 013

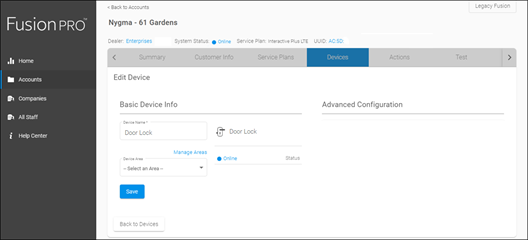

3. Select the device’s location, and then enter a name for the device.

Notes

  • We recommend naming the device after its location to avoid confusion. For example, Entryway Door Lock.
Image 014
  • If you want to add an area, click the green plus icon, enter a name for the area, and then click Add Area.
Image 015

4. Click Add It!.

The Z-Wave adding mode dialog displays.

Image 016

5. Press the Z-Wave button on the back of the Kwikset door lock. Remove the battery cover to view the Z-Wave button.

6. The door lock appears in the added devices list.

Image 017

7. Click the Summary tab to view all Z-Wave Wizard added devices and their status.

Image 018

8. Click the Close Window icon in the top-right of the wizard to exit and return to the Devices tab.

Note: The Z-Wave devices added with the Z-Wave Wizard are automatically imported on the Devices tab.

9. Expand the device to view all child devices.

Note: If the device has no children, you must unpair the door lock, and then repair it. This ensures that all features are active and available for the door lock.

To remove the door lock with Fusion:

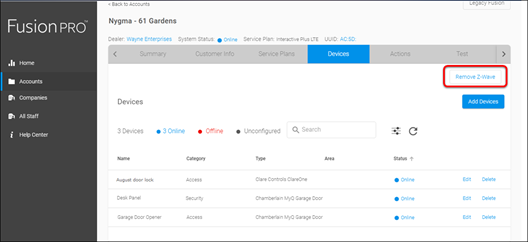

1. Access your project, and then click the Z-Wave Wizard icon .

Image 012

2. Click on Unpair a Device.

Image 019

3. Click Continue.

Image 020

4. Press the Z-Wave button on the back of the Kwikset door lock.

The door is removed from the devices list.

Creating rules with the Kwikset door lock

Configure a rule for the Kwikset door lock.

The following example sets a locked detection rule. When the door lock detects it has been locked, the homeowner is alerted with an email.

To create the door lock rule in Fusion:

1. Access your project, and then click the Rules tab.

Image 021

2. Click the New Rule button.

3. Enter a name for the rule, and then select the Enable Rule checkbox.

Image 022

4. Configure the Event Part as below.

Note: This release of the Kwikset door locks only supports the Lock/Unlock device.

  • Event Type: Device Property Change Event

Note: The Device Property Change Event replaced the Device Property Value Event.

  • Device: Kwikset Lock/Unlock
  • Function: Door Lock
  • Property: State
  • Constraint: =
  • Value: Detected
Image 023

5. Configure the Action part as below.

  • Action Type: Send Email
  • Recipients: The homeowner’s Email address

Note: To add an Email address, you must click the green plus icon . Do this for each desired Email recipient.

  • Subject: The purpose of the alarm
  • Text: The information included in the email
Image 024

6. Click the Save button, and then deploy the project.

Using the door lock in the ClareHome app

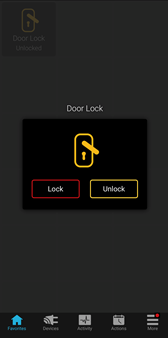

Once deployed, the user can add the device to their space, and then tap the door icon in the ClareHome app to display and operate the door locks controls, as shown below.

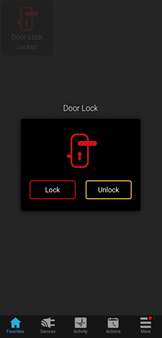

Figure 2: Locked and unlocked Kwikset display

Image 025
