Sony Android TV IP Driver Integration Release Notes

Introduction

The release of the Sony Android TV IP driver lets you integrate Sony Android televisions with the Clare Controls Network. Customers can now control their Sony Android TV through IP using the Clare Controls Application. No software or download is necessary. Simply connect the Sony TV unit to the home network, and then add the TV in Fusion.

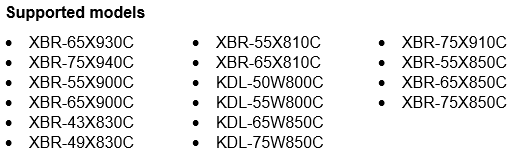

The Sony TV IP Driver supports these TVs:

Note: The following models are supported, additional models may be compatible but have not been tested.

Image 001

Note: The selected Sony Android TV must support Remote Start. This feature is found in the TV setting’s menu.

Installation

Only qualified technicians should install or connect any devices used with Clare Controls products. Refer to the installation instructions that came with your Sony Android TV. Clare Controls does not assume any responsibility for damages caused by improper installation or connection to the data network.

Note: A static IP address must be set for the Sony TV.

To connect the Sony Android TV to the home data network:

1. Access the TV’s User Interface menu, and then browse to Remote Start.

Home > Settings > Network > Home Network Setup > Remote Start

2. Set the Remote Start option to On, enabling the TV to be turned on while in standby mode.

To enable Simple IP Control:

Note: If you are using a newer Sony D series TV, enable Simple IP Control.

1. Access the TV’s User Interface menu, and then browse to Simple IP Control.

Home > Settings > Network > Home Network Setup > Simple IP Control

2. Set the Simple IP Control option to On, enabling the TV to be turned through IP control.

To set the Sony Android TV’s static IP address:

1. Access the Sony TV’s User Interface menu, and then browse to Network Setup.

Home > Settings > Network > Home Network Setup

2. Select Expert, and then WiFi or Wired LAN.

If you select WiFi, it prompts you to select the WiFi network.

– or –

If you select Wired LAN, it connects to the network automatically.

3. Select Advanced, and then IP Setting.

4. Set the IP Setting to Static.

5. Enter an IP address, and then click Next.

6. Enter the Gateway, and then click Next.

7. Enter the Network Prefix Link (6 or 24), and then C=click Next.

8. Enter the DNS1, and then click Next.

Note: If you do not know the DNS, you can use the Google DNS 8.8.8.8 and 8.8.4.4.

9. Enter the DNS2, and then click Next, the IP settings auto save.

Fusion configuration

Configure the device in Fusion to enable the Sony Android TV to function with the Clare Controls UI.

To add the Sony Android TV IP Driver:

1. Open your Fusion project.

2. Click the Devices tab, and then click the New Device button.

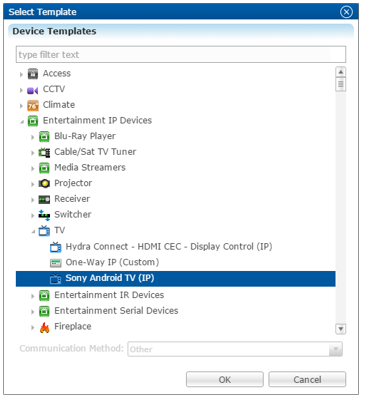

The Select Template dialog displays.

Image 002

3. Browse to Sony Android TV (IP).

Entertainment IP Devices > TV > Sony Android TV (IP)

4. Click OK.

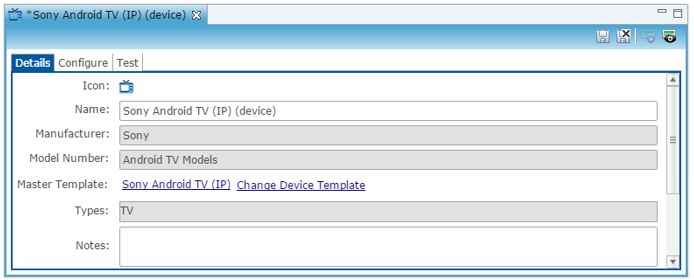

The device Details tab displays. If desired, enter a name and notes for the device.

Image 003

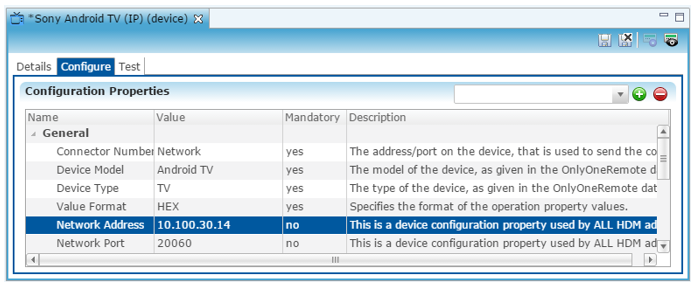

5. Click the Configure tab, and then enter the Network Address and verify that the Network Port is set to 20060.

Image 004

6. Click the Save button.

To create a service for the Sony Android TV IP Driver:

1. Click the Services tab, and then click the New Service Instance button .

The New Service Instance dialog displays.

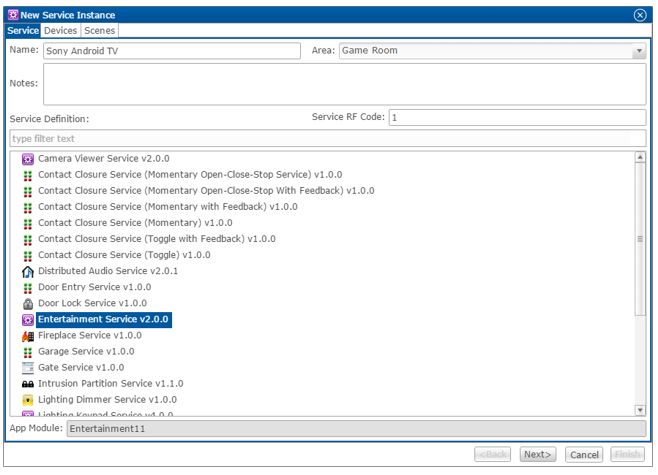

Image 005

2. Enter the name of the service in the Name field, select the area, and then click Entertainment Service.

3. Click Next to display the Devices tab.

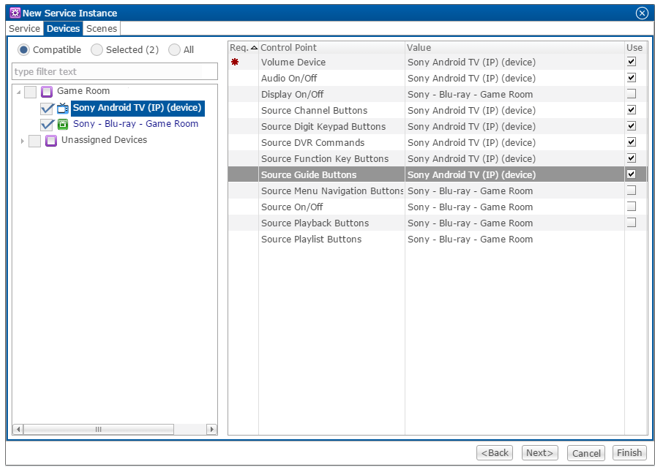

Image 006

4. In the left panel, select the devices you want to use in the service.

5. In the right panel, set the values for each control point.

Click the Value field to view the drop-down menu and select a device.

6. Click Next to display the Scenes tab.

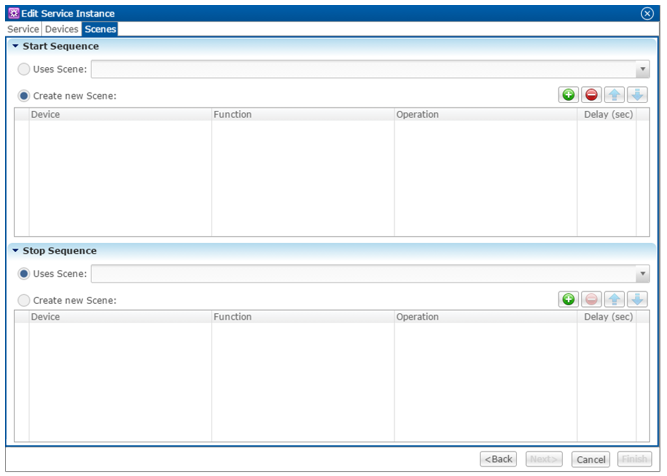

Image 007

To configure the scene:

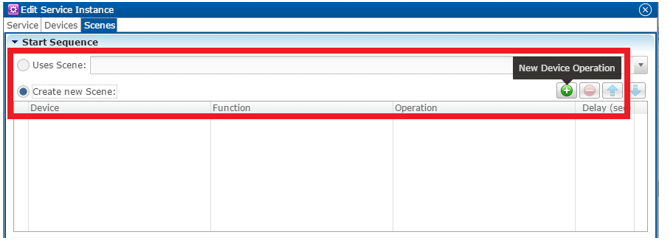

1. In the Start Sequence field, select Create new Scene, and then click the New Device Operation button.

Image 008

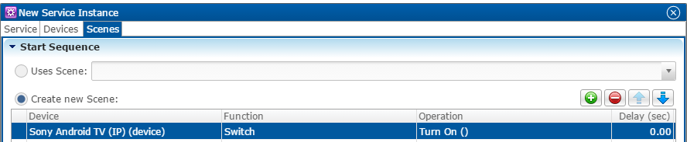

2. Configure the Device, Function, and Operation drop-down menus with the following values.

  • Device: Sony Android TV (IP)
  • Function: Switch (or other desired action)
  • Operation: Turn On
Image 009

3. Repeat steps 1 and 2 for each device being used in the scene.

4. Go to the Stop Sequence field, select Create new Scene, and then click the New Device Operation button.

Image 010

5. Configure the Device, Function, and Operation drop-down menus with the following values.

  • Device: Sony Android TV (IP)
  • Function: Switch
  • Operation: Turn Off

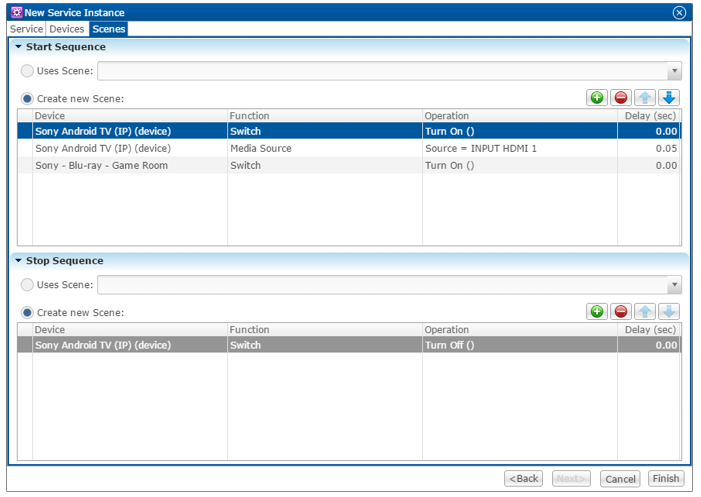

Image 011

6. Repeat steps 4 and 5 for the other devices that you are using.

7. Click Finish.

8. Deploy the project.
