Snap One WattBox Release Notes

Introduction

The Snap One WattBox is an IP-controlled power conditioner that has been tested and certified for integration with the ClareHome system. It is energy efficient and improves the quality of the power delivered to your devices.

By integrating the Snap One WattBox, the integrator will make fewer service calls to reset their customers’ network devices. The WattBox automatically detects network connectivity issues and reboots the affected devices.

The WattBox includes the following features.

  • 12 outlets, 8 controlled
  • Surge protection
  • Noise filtration
  • Automatic device reboot for lost connectivity
  • Real-time monitoring with remote access

Installing the Snap One WattBox

A qualified installation technician should install the WattBox. Refer to the installation instructions that came with your Snap One WattBox device.

Connecting the device

After installation, set up the Snap One WattBox and connect it to the ClareHome data network. To make the physical device connection, you will need a Cat 5 networking Ethernet cable.

To set up the Snap One WattBox:

1. Go to the Snap One website http://www.snapav.com.

2. Browse to the WattBox page Home > Power Products > IP Enabled > WB-600-IPVCE-12, and then click the Support tab.

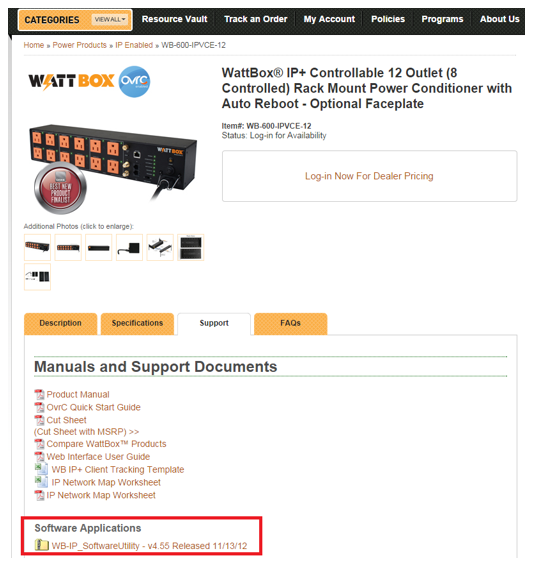

Image 001

3. Download and launch the WB-IP_SoftwareUtility application.

4. Follow the WattBox Utility setup wizard. Fill in all required information and click Finish.

To connect to the ClareHome data network:

1. Attach one end of the Cat 5 cable to the back of the WattBox, and then attach the other end of the cable to a port on the ClareHome data Network.

Configuring the device

Once you have installed and connected the Snap One WattBox, you must configure it in Fusion. Follow the steps below for Fusion configuration.

To add a Snap One WattBox in Fusion:

1. Log into Fusion and select the project and version.

2. Click the Devices tab, and then click the New Device button to display the Select Template dialog.

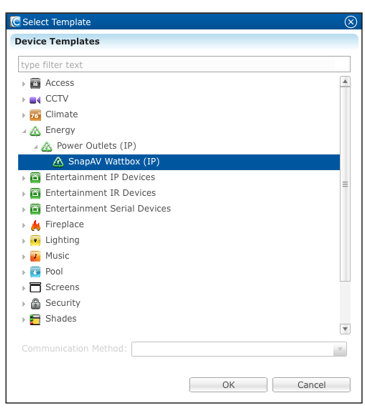

Image 002

3. Browse to Energy > Power Outlets (IP) > Snap One Wattbox (IP), and then click OK.

This displays the Snap One Wattbox (IP) – Device Wizard.

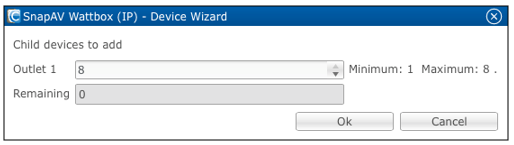

Image 003

4. In the Device Wizard, enter the number of outlets to be controlled, and then click OK.

Note: Snap One WattBox will support up to 8 controllable outlets.

5. In the Details tab’s Name field, enter a name for the device.

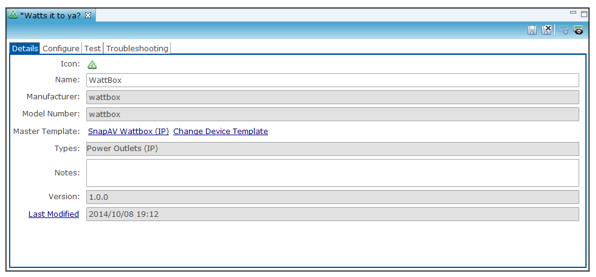

Image 004

6. Click the Configure tab.

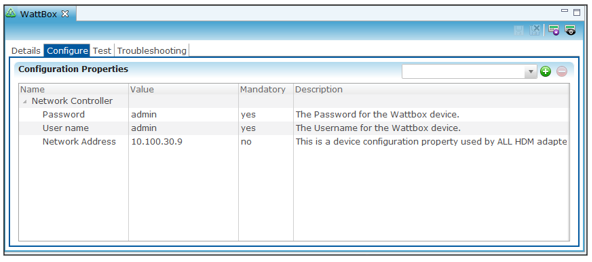

Image 005

7. Enter values in the following fields:

  • In the Password value field, enter the password associated with the device.
  • In the User name field value, enter the user name associated with the device.
  • In the Network Address value, enter the IP address.

8. Click the Save button.

Configuring the outlets in Fusion

After configuring the WattBox device in Fusion, configure the individual outlets in Fusion.

To configure the WattBox outlets in Fusion:

1. Return to the Devices tab, and then expand the Power Outlets (IP). Configure each of the power outlets.

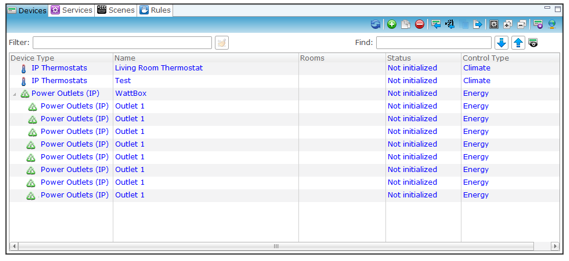

Image 006

2. Double-click the first outlet, and then enter a name in the Name field.

Note: We recommend naming the outlets for their intended devices.

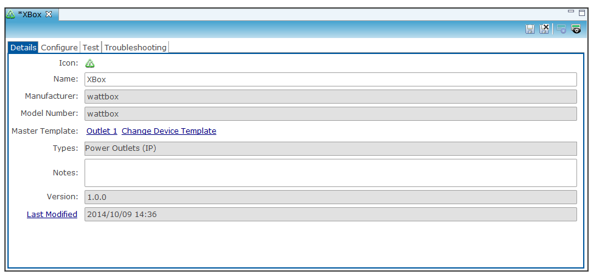

Image 007

3. Click the Configure tab, and then expand the Switch field. Enter the outlet number you want associated with this name.

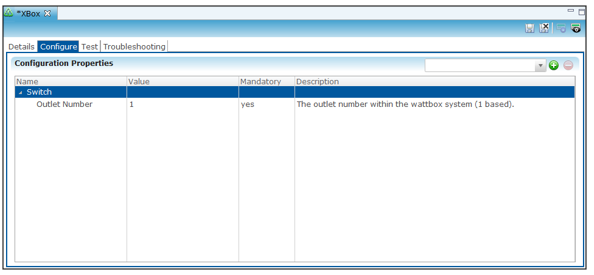

Image 008

4. Click the Save button.

5. Repeat steps 2 through 4 until you have configured each outlet.

Note: Snap One WattBox feature Logs and Schedules is not currently supported.



Full PDF - Snap One WattBox Integration Release Notes (DOC ID 833)
