Pioneer Blu-ray IP Driver Integration Release Notes

Introduction

Note: If the Pioneer Blu-ray player loses power, it’s NIC card shuts off. The device is shown as offline in Fusion. Simply turn the Blu-ray player on manually to restore connection. We recommend having battery backup for the Pioneer Blu-ray player.

The release of the Pioneer Blu-ray IP driver allows you to integrate Pioneer Blu-ray players (models listed below) with Clare Home over IP. Customers can now control their Pioneer Blu-ray through IP using the Clare Home Application.

No software or download is necessary. Simply connect the Pioneer Blu-ray player to the home network, and then add it in Fusion.

The Pioneer Blu-ray IP Driver supports the following Blu-ray players:

Note: The following models are supported, additional models may be compatible but have not been tested.

  • BDP-09FD
  • BDP-23FD
  • BDP-31FD
  • BDP-33FD
  • BDP-41FD
  • BDP-42FD
  • BDP-53FD
  • BDP-43FD
  • BDP-52FD
  • BDP-62FD
  • BDP-80FD
  • BDP-140
  • BDP-430

Installation

Only qualified technicians should install and connect devices used with Clare Controls products. Refer to the installation instructions that came with your Pioneer Blu-ray player. Clare Controls does not assume any responsibility for damages caused by improper installation or connection to the network.

Notes

  • You must set a static IP address for the Pioneer Blu-ray player.
  • The Pioneer Blu-ray player must have Quick Start enabled.

To enable Quick Start for the Pioneer Blu-ray player:

1. Access the Pioneer Blu-ray player’s menu, and then browse to Quick Start.

Initial Setup > Options > Quick Start

Note: Menu navigation may vary by model.

2. Set the Quick Start option to On.

This enables the Blu-ray player to be turned on while in standby mode.

3. Exit the Blu-ray menu.

Configuring in Fusion

Configure the Blu-ray player in Fusion to enable use with Clare Home and the Clare Controls UI.

To add the Pioneer Blu-ray player:

1. Access your project in Fusion.

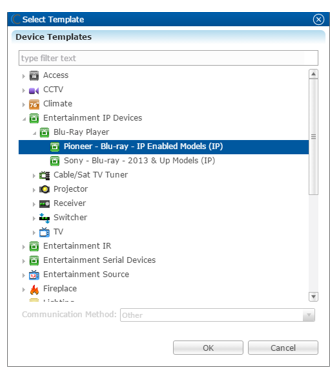

2. Click the Devices tab, and then click the New Device button.
The Select Template dialog displays.

Image 001

3. Browse to Pioneer - Blu-ray - IP Enabled Models (IP).

Entertainment IP Devices > Blu-Ray Player > Pioneer - Blu-ray - IP Enabled Models (IP)

4. Click OK, the Details tab displays.

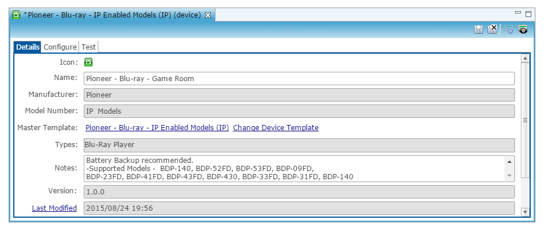

5. Enter a name and notes for the Blu-ray player.

Image 002

6. Click the Configure tab.

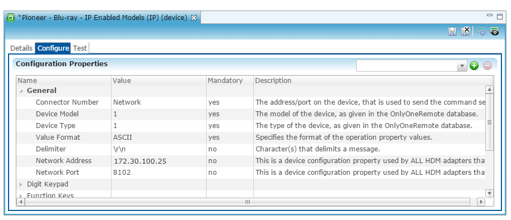

Image 003

7. Enter the Blu-ray player’s IP Address in the Network Address field, and then verify that the network port is set to 8102.

8. Click the Save button.

9. Create a service for the Blu-ray player in Fusion.

Creating a Service

After installation, enabling Quick Start, and adding the device in Fusion, create the service for the Blu-ray player in Fusion.

To create a service for the Sony Blu-ray player:

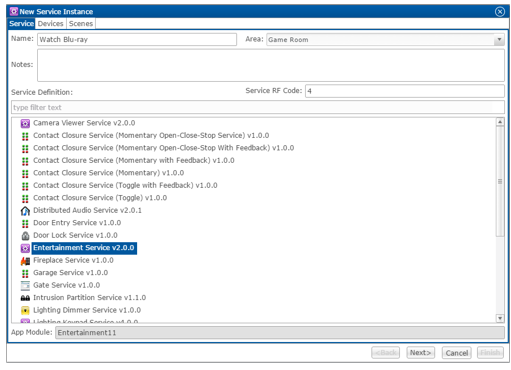

1. Click the Services tab, and then click the New Service Instance button .

The New Service Instance dialog displays.

Image 004

2. Enter the name of the service in the Name field, select the area, and then click Entertainment Service.

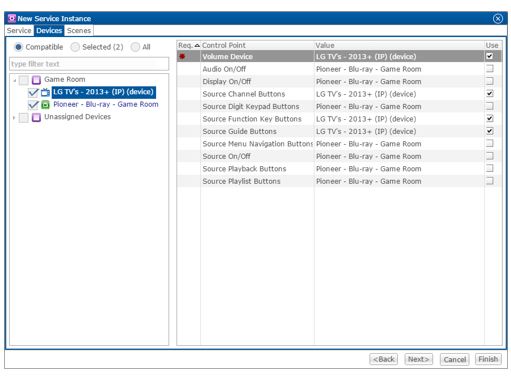

3. Click Next to display the Devices tab.

Image 005

4. In the left panel, select the devices you want to use in the service.

5. In the right panel, set the values for each control point.

Click the Value field to view the drop-down menu, and then select the device.

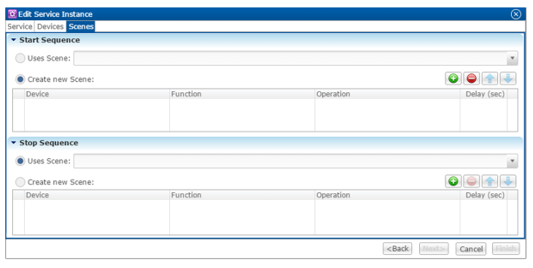

6. Click Next to display the Scenes tab.

Image 006

To configure the scene:

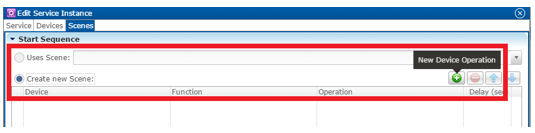

1. In the Start Sequence field, select Create new Scene, and then click the New Device Operation button.

Image 007

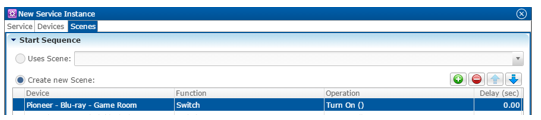

2. Configure the Device, Function, and Operation drop-down menus with the following values.

Device: Select the Pioneer Blu-ray player.

Function: Select the desired function for the Blu-ray player – for example, Switch.

Operation: The desired function state – for example, Turn On.

Image 008

3. Repeat steps 1 and 2 for each device.

Note: Steps 1 and 2 can be repeated to make the selected device perform another action. For example, the Blu-ray player turns on for the first action, and then 5 seconds later it displays the Title Menu.

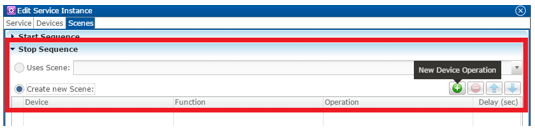

4. Select the Stop Sequence field, select Create new Scene, and then click the New Device Operation button.

Image 009

5. Configure the Device, Function, and Operation drop-down menus with the desired values.

Image 010

6. Repeat steps 4 and 5 for each device.

7. Click Finish.

8. Deploy your project.

Full PDF - Pioneer Blu-ray IP Driver Integration Release Notes (DOC ID 1181)
