      Integrating HDMI and HDBaseT Switches into a Crestron Project Product Bulletin

      Introduction

      The Clare Controls CM-MT Series Switcher module lets you integrate the following Clare Controls HDMI and HDBaseT matrix switches into your Crestron project.

      Image 001

      Supported hardware

      This module works with any 2-series or 3-series processor that supports serial ports.

      Configuration

      To integrate the switcher into your Crestron project:

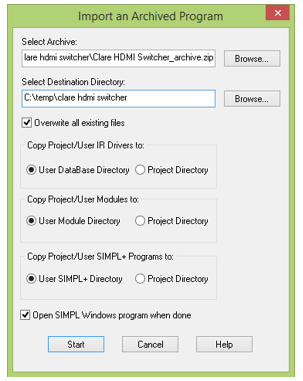

      1. Start your Crestron SIMPL Software, and then click File/Import Archive Program.

      Image 002

      2. In the Select Archive field, browse to directory where you placed your module file to select and import it. Click Start.

      3. Open or create a working Crestron project, and then drag the module into the Logic folder.

      Image 003

      4. Double-click the new module, and then configure it for your project.

      Image 004

      5. Next configure the serial settings for your project, as shown below.

      • Baud: 9600
      • Data bits: 8
      • Stop bits: 1
      • Parity: N
      • Handshaking: None
      • Cable type: straight though
      Image 005

      6. Save your settings.

      Full PDF - Integrating HDMI and HDBaseT Switches into a Crestron Project Product Bulletin (DOC ID 385)
