      Integrating Clare Controls HDMI Matrix Switches into an Elan G Project Product Bulletin

      Introduction

      The Clare Controls CM-MT series switch driver lets you integrate the following Clare Controls HDMI matrix switches into your ELAN g! project.

      CM-MT series switch models

      • HDMI 4x4 Matrix Switch
      • HDBaseT 4x4 Matrix Switch
      • HDMI 8x8 Matrix Switch
      • HDBaseT 8x8 Matrix Switch
      • 16x16 Modular Matrix Switch

      Connecting your Clare Controls CM-MT series switch to an ELAN g! controller

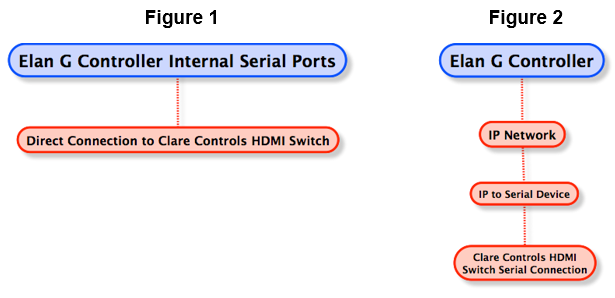

      You can connect your Clare Controls CM-MT series switch to an ELAN g! controller two ways. You can connect the switch directly to the ELAN g! controller’s internal serial port (Figure 1), or you can connect the switch to the IP network (Figure 2). To connect to the IP network, you will need to attach an IP-to-Serial device, such as a Global Cache’ iTach device.

      Image 001

      Configuration

      Before you begin configuring your project, ensure the ELAN g! controller is set up on your network.

      Note: ELAN g! training and the g!Tools program are required for programing.

      To add a communication device:

      1. Locate your ELAN g! controller on the network.

      2. Add a communications device, and then select one of the internal RS-232 ports, or an IP-to-Serial device, such as a Global Caché IP-to-Serial device.

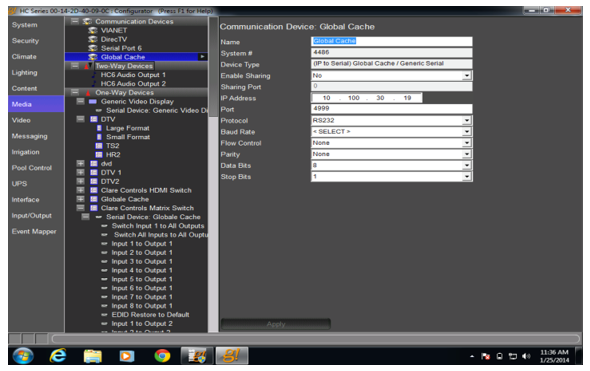

      3. Using the g!Tools software, enter a name, IP address, and port number for the communication device, as shown below.

      Image 002

      4. Click Apply.

      To add a new interface:

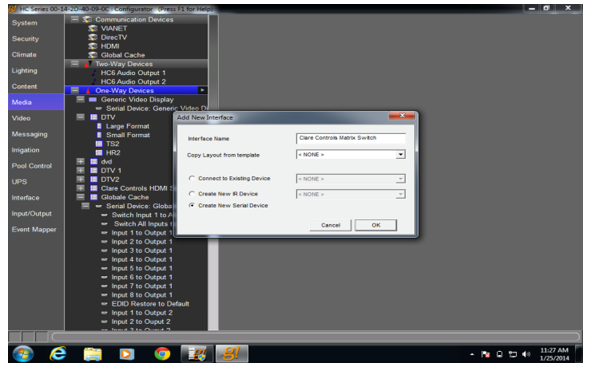

      1. In the Add New Interface dialog, enter a name for the interface, and then click Create New Serial Device.

      Image 003

      2. Click OK.

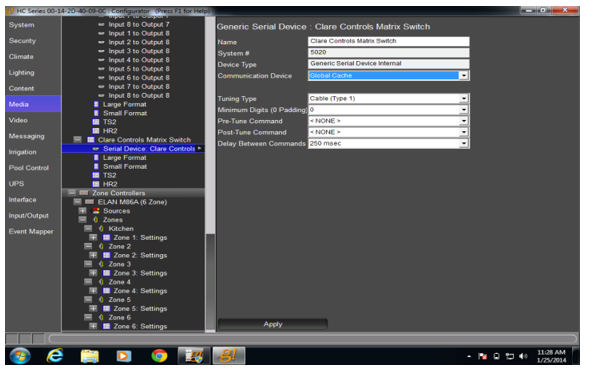

      3. Open the device, and then select your communication method.

      Image 004

      4. Click Apply.

      To import the Clare Controls driver:

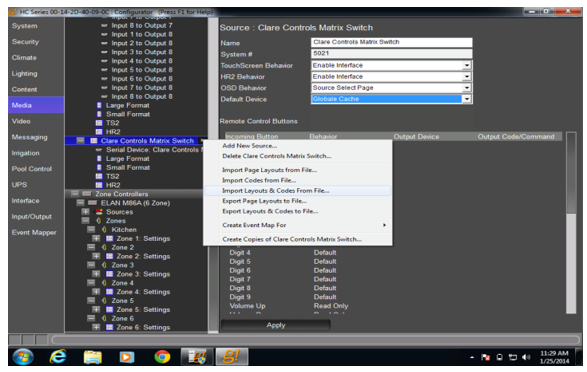

      1. Click the arrow to display the pop-up menu for the device.

      Image 005

      2. Click Import Layouts & Codes From File.

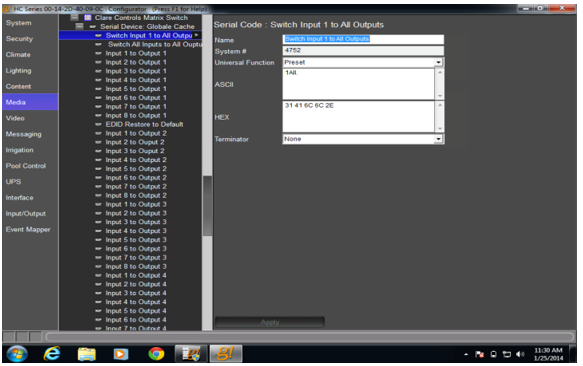

      3. Select the Clare Controls Driver from your computer, and then click Open.

      Image 006

      To test the Clare Controls driver:

      1. Click the arrow to display the pop-up menu for the device command.

      2. Click Test Command. The command is sent from the ELAN g! controller to the HDMI switch.

      Full PDF - Integrating Clare Controls HDMI Matrix Switches into an Elan G Project Product Bulletin (DOC ID 482)
