      CV-MENC-1 Installation Sheet

      Model CV-MENC-1

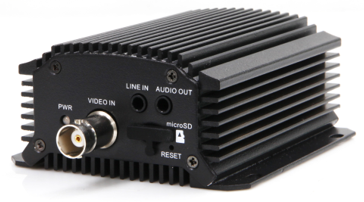

      Image 001

      Description

      The ClareVision encoder lets you integrate analog cameras into ClareVision (or other) IP video surveillance solutions. The single-channel PoE device supports video encoding at up to 4CIF in a variety of common video standards across multiple network protocols. The encoder streams video from a single camera with or without two-way audio.

      Package contents

      Remove all contents from the encoder packaging and ensure you have the following items.

      • 1X single-channel encoder
      • 1X 12 V power supply
      • 1X 6-pin 2.5 mm terminal block
      • 1X 2-pin 3.5 mm terminal block (for power)
      • 4X mounting screws

      Hardware overview

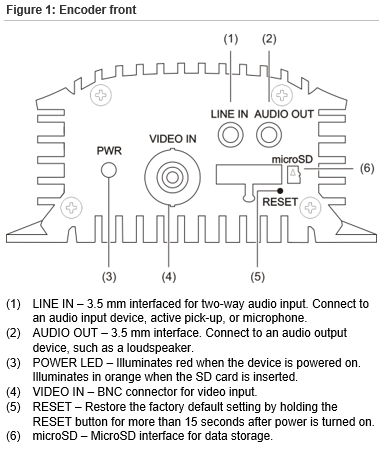

      Image 002

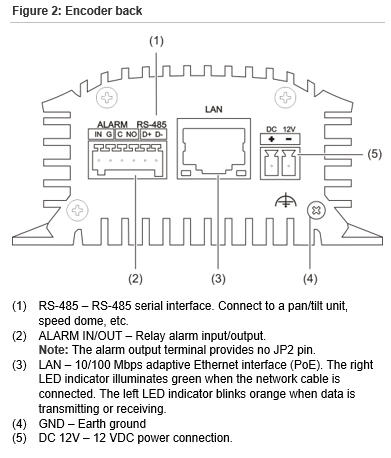

      Image 003

      Mount the encoder

      Caution: This encoder is not approved for outdoor use. Only install this product in an indoor environment.

      The encoder kit contains four screws for mounting the device to a solid surface.

      To mount the encoder:

      1. Place the encoder against a solid surface, and then mark the location of the mounting holes.

      2. Remove the encoder, and then drill the four mounting holes.

      3. Position the encoder, and then attach it to the surface using the screws provided.

      Connect the cables

      To make the front connections:

      1. Connect the camera to the encoder’s BNC connection labeled “VIDEO IN”.

      2. (Optional) Connect an audio input device, such as a microphone, to the port labeled “LINE IN”.

      3. (Optionally) Connect an audio output device, such as a loudspeaker, to the port labeled “AUDIO OUT.”

      To make the back connections:

      1. Connect one end of a shielded network cable to the encoder port labeled “LAN” and then connect the other end of the cable to one of your router’s network ports.

      2. Insert the 6-pin terminal block into the port labeled “ALARM” and then optionally connect external input/output devices – for example, alarm devices.

      3. Attach a grounding wire to the encoder using the grounding screw, and then attach the other end to your rack or other ground.

      Insert the memory card

      You can store video directly to a microSD memory card inside the encoder.

      To install a microSD card:

      1. Insert a microSD card (not included) into the port labeled “microSD” on the front of the encoder.

      2. Check to be sure the card is in the correct orientation.

      Connect power

      A 2-pin 3.5 mm terminal block is used for power input.

      To connect power:

      1. Insert the 2-pin terminal block into the outlet marked “DC12V”, making sure that it is seated properly. See Figure 2, item 5.

      2. Insert the power cable wire marked “DC12V+” into the connector hole marked “+.”

      3. Inset the power cable wire marked “GND” into the connector hole marked “-.”

      4. Attach the other end of the power adapter to and AC outlet.

      5. Check that the indicator LEDs to verify the correct conditions.

      Resetting to the factory default

      This will reset all parameters, including the IP address, to the factory default settings.

      To reset the encoder to the factory default:

      1. Ensure the encoder is powered off.

      2. Insert a rigid object, such as the end of a paper clip, into the Reset hole, and then press in and hold the button for 15 seconds. See Figure 1, item 5.

      Setting the encoder over the LAN

      To view and configure the encoder via LAN (Local Area Network), you need to connect the encoder in the same subnet with your PC. Then, install the SADP software to search and change the IP of encoder.

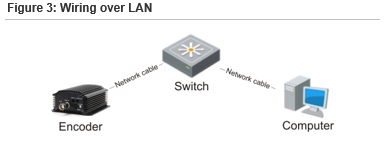

      The following figure shows the cable connection of encoder and PC:

      Image 004

      To set the IP address of the encoder for accessing via LAN:

      1. To get the IP address, use the SADP, a software tool that can automatically detect encoder in the LAN and list the device information like IP address, subnet mask, port number, device serial number, device version, etc., shown in the figure below.

      2. Change the IP address and subnet mask to the same subnet as of your PC.

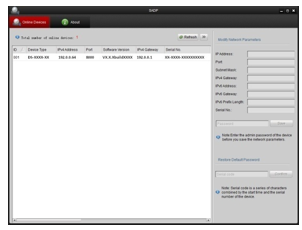

      After launching the SADP software, it automatically searches the online devices every 15 seconds from the subnet where your computer is located. It displays the total number and information of the searched devices in the Online Devices interface. The interface displays the device type, IP address, port number, and gateway.

      Image 005

      Notes

      • The camera takes 15 seconds to show up online, and 45 seconds to show offline when it is removed.
      • Click Refresh Every 15s to refresh the online device list manually.
      • Click the arrows on each column heading to change the order of the displayed information.
      • Click right arrows to show the device table and hide the network parameter panel, or click the left arrows to show the network parameter panel.

      To modify device information:

      1. Select the device to be modified from the device list as shown below.

      Image 006

      2. The network parameters of the device will be displayed in the Modify Network Parameters panel on the right side as shown below.

      Image 007

      3. Edit the modifiable network parameters – for example, IP address and port number.

      4. Enter the password of the admin account of the device in the Password field and click Save to save the changes.

      5. Enter the IP address of encoder in the address field of the web browser to view the live video.

      Notes

      • The default value of the IP address is 192.168.1.250. The default user name is “clareadmin,” and password is “secure7.”
      • When accessing the encoder from different subnets, set the gateway for the encoder after you log in.
      Accessing via a web browser

      System requirements

      • Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits
      • CPU: Intel Pentium IV 3.0 GHz or higher
      • RAM: 1G or higher
      • Display: 1024 x 768 resolution or higher
      • Web browser: Internet Explorer 7.0 and above, Apple Safari 5.02 and above, Mozilla Firefox 3.5 and above, and Google Chrome8 and above

      To access via a web browser:

      1. Open the web browser.

      2. In the browser address bar, enter the IP address of the encoder – for example, 192.168.1.250 and press Enter to display the login interface.

      3. Enter the user name and password, and then click Login.

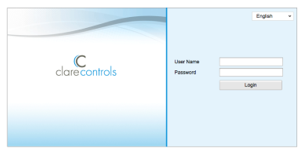

      Image 008

      4. Install the plug-in before viewing the live video and managing the encoder. Follow the installation prompts to install the plug-in.

      Notes

      Image 009

      5. Click OK.

      Image 010

      6. Click Next.

      Image 011

      7. Click Finish.

      Image 012

      8. Reopen the web browser after the installation of the plug-in and repeat steps 2 and 3 to login.



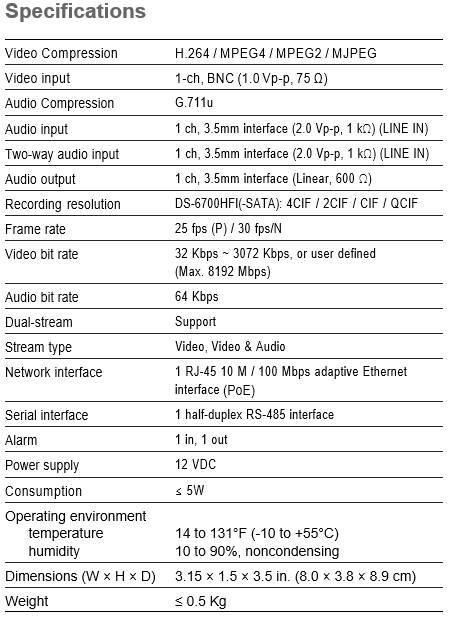

      Image 013



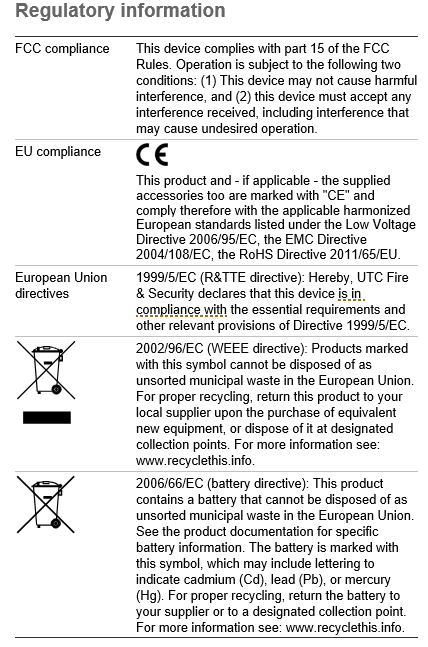

      Image 014

      Warranty information

      Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty.



      Full PDF - CV-MENC-1 Installation Sheet (DOC ID 557)
