Liftmaster Chamberlain MyQ Release Notes

Introduction

The Liftmaster Chamberlain MyQ enabled garage door openers are now supported in ClareHome. The MyQ garage door openers are position-aware and provides both audible and visual warnings prior to remotely activating garage door movement. This integration allows ClareHome users to control their garage door from their Android smartphone or iOS device.

Notes

Installing MyQ

Only qualified installation technicians should install the MyQ garage door opener. Refer to the installation instructions that came with your device. Clare Controls does not assume any responsibility for damages caused by improper installation or connection to the network. Register your MyQ device on the Chamberlain MyQ website before adding and configuring the device using ClareHome.

Connecting MyQ to ClareHome

Connecting MyQ to your ClareHome project requires the home owner to create a Liftmaster/Chamberlain MyQ account and subscribe to their service usage. Once an account is created and subscription select, an installer or home owner can authorize the MyQ devices in ClareHome.

To create a Liftmaster/Chamberlain MyQ account:

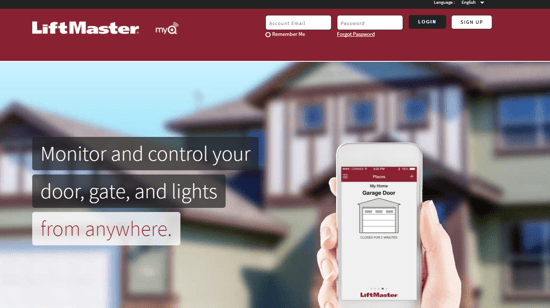

  1. Open your web-browser, and then browse to the MyQ website.
    https://www.myliftmaster.com

    Image 001
  2. Click SIGN UP.
  3. Fill out the form and confirm your account.
  4. Once the account is created, subscribe to the MyQ service.

To subscribe to the MyQ service:

Note: This integration requires a paid service from MyQ.

  1. Open your web-browser, and then browse to the MyQ service website.
    https://www.myqservices.com

  2. Enter the credentials for your Liftmaster/Chamberlain MyQ account, and then click Authenticate.

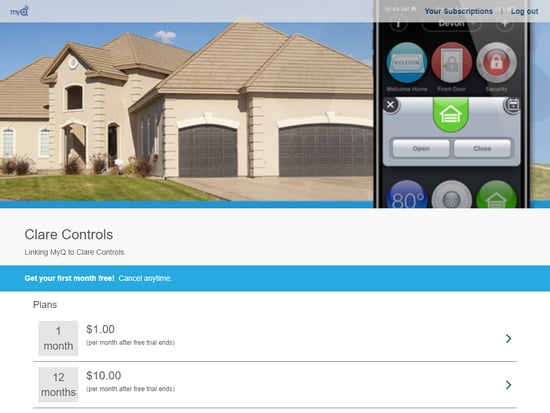

  3. Select a subscription.

    Image 002

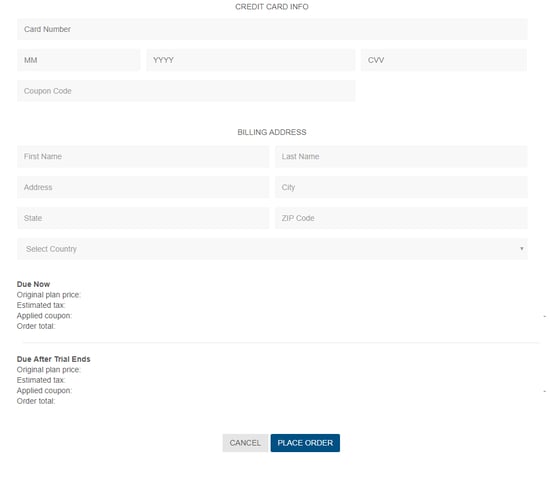

  4. Complete the subscription form.

    Image 003
  5. Click PLACE ORDER, and then add your devices to your ClareHome account.

Configuring MyQ in ClareHome and FusionPro

Once you have installed and setup the MyQ device using the Chamberlain MyQ app, add and configure it with the ClareHome app or FusionPro.

Notes

  • Internet connection is required when adding a MyQ device.
  • You will need the Liftmaster Chamberlain MyQ account’s credentials.
  • When modifying your MyQ subscription after your MyQ device is added to ClareHome, you may need to exit the Configuration menu to view changes. It may take several minutes for MyQ Subscription changes to take effect.

To add a MyQ device using the ClareHome app:

  1. Tap the ClareHome app's Devices page.

  2. Tap + Add Device.

  3. Tap Add Devices.

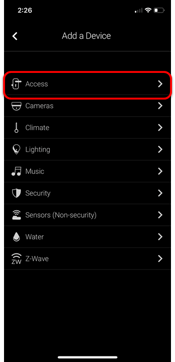

  4. Select the device category, Access.

    select access

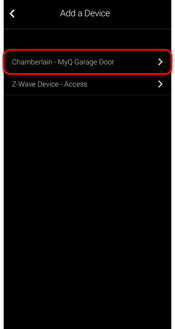

  5. Select Chamberlain - MyQ Garage Door.

    chamberlain

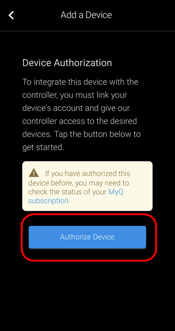

  6. Read through the displayed information, and then tap Authorize Device.

    authorize device

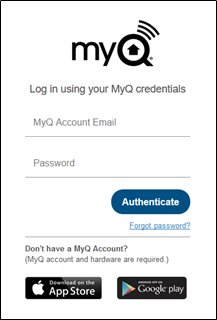

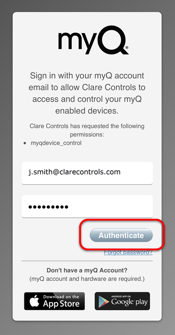

  7. Enter your MyQ credentials, and then tap Authenticate.

    tap authenticate

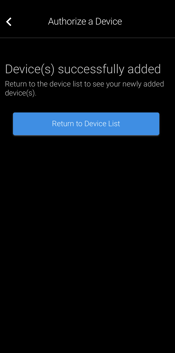

    Once the device(s) are authorized, a success message displays.

    IMG-1378

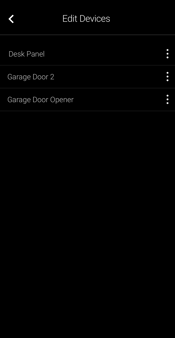

  8. Tap Return to Device List to view the Devices list.

    IMG-1379

    To add a MyQ device using FusionPro:

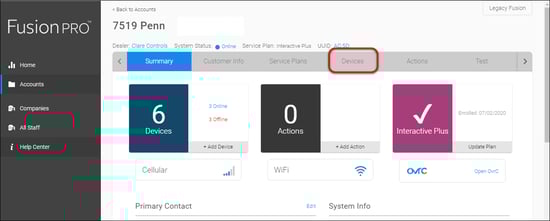

    1. Access the desired account in FusionPro, and then click the Devices tab.

      devices

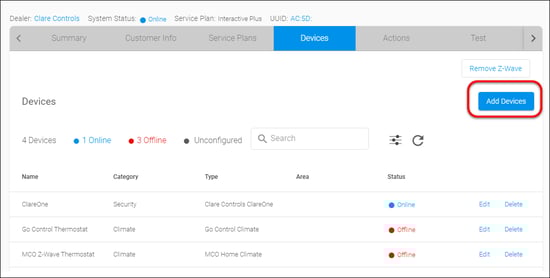

    2. Click Add Devices.

      add devices

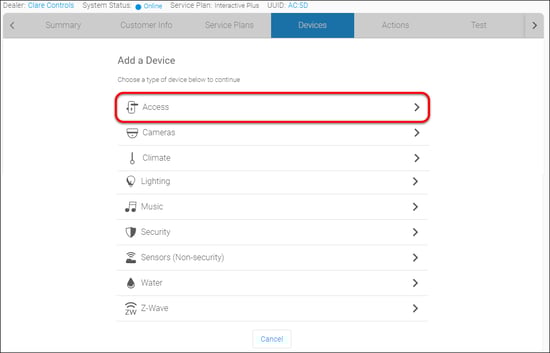

    3. Select the device category, Access.

      select access

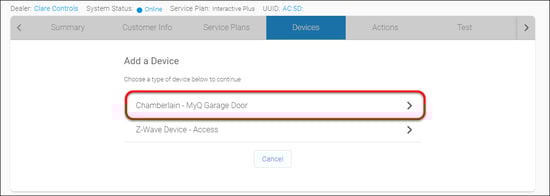

    4. Select Chamberlain – MyQ Garage Door.

      Chamberlain myq

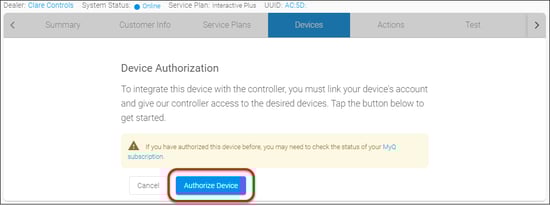

    5. Then Authorize Device.

      authorize device

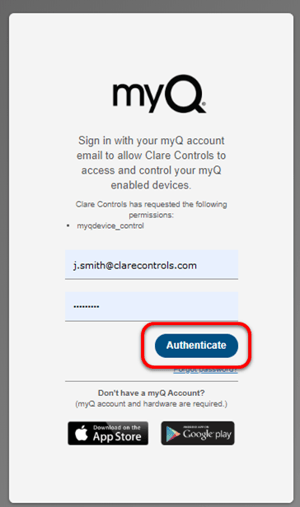

    6. Enter the MyQ credentials, and then click Authenticate.

      authenticate

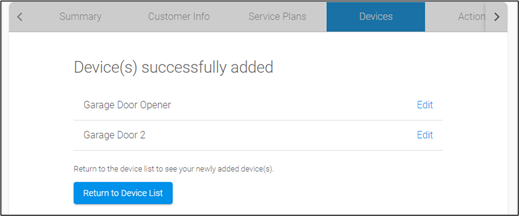

    7. The MyQ device(s) are added successfully, tap Return to the Device list to view all device.

      device added

    Creating Scenes with MyQ

    Configure a Scene with your garage door. The example below walks through the creation of a lock up Scene, shutting the garage door and setting the alarm.

    Note: The MyQ device cannot be set to open in a Scene. For security purposes, the device can only be opened when tapping the device and selecting open.

    To create a lock up Scene:

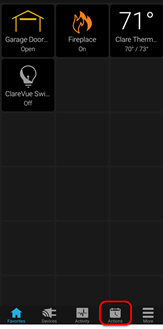

    1. Access the ClareHome app’s Actions page.

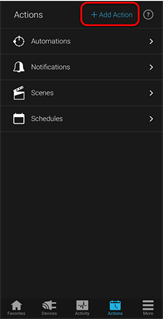

    2. Tap + Add Action.

    3. Tap the New Action field and enter the desired name for the Scene.

      IMG-1386
    4. Select the “Do This” action.
      The “Do This” action is the device(s) action(s) in response to the “When” action. For example, when this icon is tapped, the garage door closes and the security system arms.
      1. Tap Operate a Device to add your first device, the garage door, to the Scene.
        Note: Run a Scene is an option for pre-existing dealer created Fusion Scenes. This option is not always available.

        IMG-1387

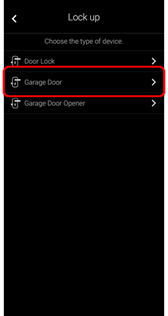

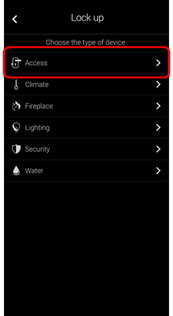

      2. Select the category (Access), and then the device (Garage Door).


      3. Select the device action (Close), and then tap Continue.

      4. Tap +Add to add an additional device action, and then repeat steps b and c to select the device and action.

    5. Select the “When” action.
      The “When” action is the trigger of the device action (Do This).
      1. Tap A Tile is Pressed.

      2. Swipe to the left/right until finding the desired icon, and then tap Continue.

    6. Tap Save.



      The Scene is now accessible in Scenes list.

    Creating Automations with MyQ

    Create an Automation for your garage door. The example below walks through creating a lockdown Automation, locking the door lock when the garage door closes.

    Note: The MyQ device cannot be set to open in an Automation. For security purposes, the device can only be opened when tapping the device and selecting open.

    To create an automation:

    1. Access the ClareHome app’s Actions page.

    2. Tap + Add Action.

    3. Tap the New Action field and enter the desired name for the Automation.

    4. Select the “Do This” action.
      The “Do This” action is the device(s) action(s) in response to the “When” action. For example, when the garage door closes, the front door locks.
      1. Tap Operate a Device to add your first device, the front door lock, to the Scene.
        Note: Run a Scene is an option for pre-existing dealer created Fusion Scenes. This option is not always available.

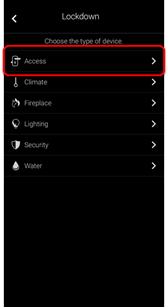

      2. Select the category (Access), and then the device (Door Lock).


      3. Select the device action (Lock), and then tap Continue.

      4. Tap +Add to add an additional device action, and then repeat steps b and c to select the device and action.

    5. Select the “When” action.
      The “When” action is the trigger of the device action (Do This).
      1. Tap A Device Action Occurs.

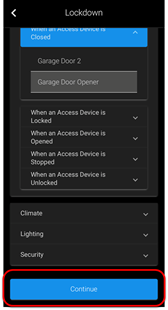

      2. Expand the device category (Access), the device actions (When an Access Device is Closed), and then select the device (Garage Door).

      3. Then tap Continue.

    6. Tap Save.

          Using the Liftmaster controls in the ClareHome app

          Once deployed, the user can add the MyQ device to their space, and then tap the garage door icon in the ClareHome app to display and operate the garage door’s controls, as shown below.

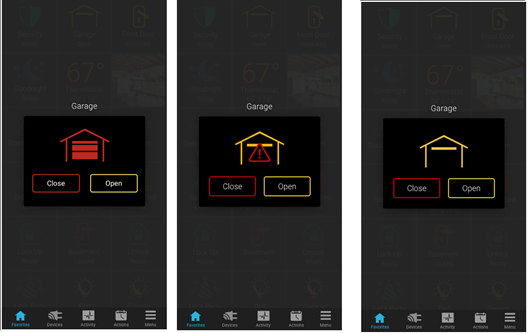

          Figure 1: MyQ display





          Table 1: Garage door state icons

          Icon color

          Garage door status

          The garage door is closed.

          The garage door status is unknown.

          The garage door is open.







          Full PDF - Liftmaster Chamberlain MyQ Integration Release Notes (DOC ID 1615)
