      Integration Release Notes: Timber Blinds OTTO Home Control 2.0

      Revision: 1.0.0
      Date: 01/03/2022

      Introduction

      Clare integrates the Timber Blinds / OTTO HOME CONTROL 2.0 hub and supported Shade devices to the ClareOne panel.

      • The integration requires a minimum ClareHome version of 9.3.6
      • A Timber Blinds OTTO HOME CONTROL 2.0 hub is required.
      • The Timber Blinds OTTO HOME CONTROL 2.0 hub should be on the same network as the ClareOne system.

      Installation

      Before adding to Clare, please follow the installation instructions that came with your Budget Blinds - Smart Home Collection hub and confirm shade devices are functional in the Smart Home Collection mobile application. Clare Controls does not assume responsibility for damages caused by improper installation, connection to the network, or use of the device.

      Adding Timber Blinds / OTTO HOME CONTROL 2.0 Integration to ClareOne

      From the ClareHome App:

      1. Open the ClareHome app and connect to a location.
      2. Tap Devices the Sub Menu bar.
        App Menu
      3. In the top right of the Device page, tap + Add Device.
        Add Devices

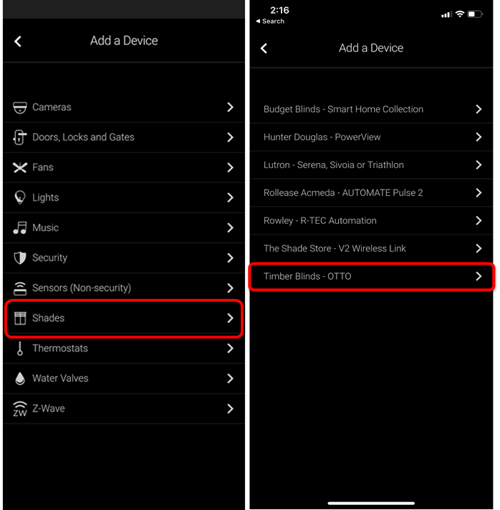

      4. Select the Shades Category, then “Timber Blinds - OTTO HOME CONTROL 2.0”.
        Timber Blinds 1
      5. Tap Enabled Discovery, and then wait until the discovered hubs are shown.
        Upon Successful connection, discovered shades will show under the hub device. (This process may take up to 30 seconds.)
        Discover Hub App 2
      6. Once Complete, tap the back arrow and add the newly discovered Timber Blinds devices to the Favorites page.
        Add Tile



        From FusionPro:

        1. Navigate to the Account you want to add the blinds integration.
        2. Select the Device tab, select Add Devices, then the Shades category.
          Select Shade Tile

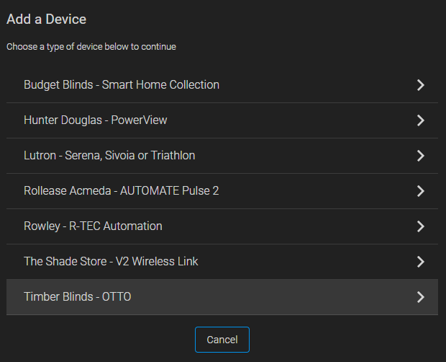

        3. From the Shades category select Timber Blinds - OTTO.
          Timber Blinds 2
        4. Tap Enable Discovery to discover any Timber Blinds on the network.
          Discover Hub FusionPro

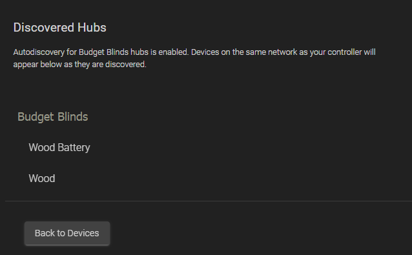

        5. Upon Success, discovered devices will show under the hub device.
          (This process may take up to 30 seconds.)
          Budget Blinds 4
        6. Once completed, tap Back to Devices to find the added devices in the Devices list.

        Troubleshooting

        Timber Blinds OTTO devices are not discovering:

        • Confirm that the ClareOne panel is on the same network as the Timber Blinds OTTO HOME CONTROL 2.0 hub.
        • Confirm that the Timber Blinds are configured and controllable via the OTTO HOME CONTROL 2.0 app.



        Download Release Notes

        Last Updated: 01/10/2022
