      CLIQ.mini Quick Start Guide

      Introduction

      Thank you for choosing Clare Controls. In today’s competitive market place, we can appreciate that you have many choices for your home automation needs.

      This document is intended as a quick-start guide, not a full product guide. For more information, view the full CLIQ.mini Controller Installation and Setup Guide (DOC ID 1263).

      Included and recommended tools

      Ensure all accessories are included. If not, contact your dealer.

      Included with the CLIQ.mini.

      • CLIQ.mini smart home control hub
      • Ethernet cable
      • Paper clip/Reset tool
      • Power over ethernet (PoE) injector
      • PoE power supply
      • Mounting bracket and screws
      • UUID/Mac identification labels

      Recommended tools:

      • #2 Phillips head screwdriver (used for mounting bracket installation)
      • Needle node pliers (used to insert micro USB plug into CLIQ.mini)

      CLIQ.mini diagram

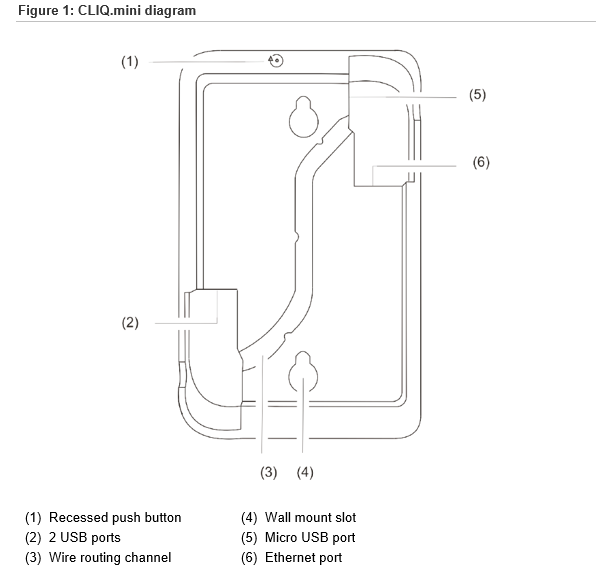

      The following image is a diagram of the CLIQ.mini controller. Use this diagram during installation and for reference.

      Image 001

      Installation options

      Select an installation option.

      Installation Option 1: PoE (Power over Ethernet)

      To connect to ClareHome you must have the Install Assist app, a CLIQ.mini controller, and access to your home’s Wi-Fi.

      Note: This method requires that the user has 2 Ethernet cables.

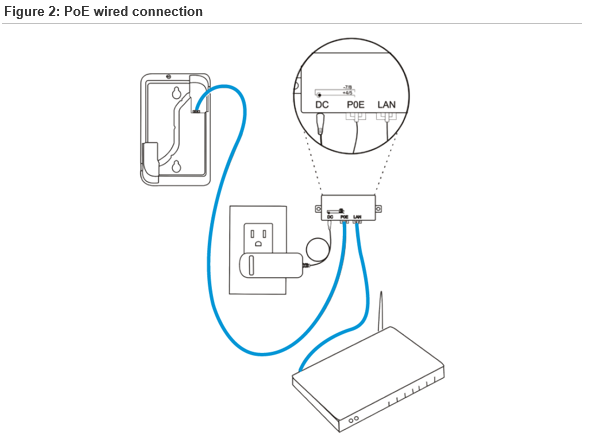

      Image 002

      To setup your CLIQ.mini using PoE:

      1. Connect the CLIQ.mini to the included PoE injector using an ethernet cable.

      2. Connect the PoE injector to the router using a second Ethernet cable, and then plug in the injector’s power supply.

      Note: If the LED does not change to solid blue, see “LED Display” on page 6 or “Troubleshooting”.

      3. Download Install Assist app for iOS or Android. You can now use apps to add smart home devices. Refer to the Clare Controls Knowledge Base for information on supported devices.

      Note: A Fusion project must be created.

      Installation Option 2: Wi-Fi

      To connect the CLIQ.mini using Wi-Fi, you will need access to the Install Assist app, a CLIQ.mini controller, and the home’s Wi-Fi network.

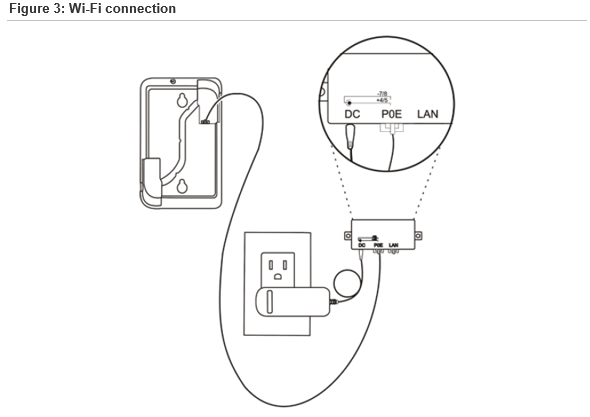

      Image 003

      To setup your mini using the power supply and ethernet:

      1. Connect the CLIQ.mini to the included PoE injector using an ethernet cable.

      2. Download the Install Assist app.

      3. Open the Wi-Fi settings on your phone and connect to the CLIQ.mini’s broadcasted network (ClareWifi-xxxx).

      4. Open the Install Assist app and tap WiFi Config.

      a. Enter the home’s Wi-Fi SSID and password, tap Next, and then follow the on-screen instructions.

      b. Wait for the LED on the CLIQ.mini to turn solid blue. The CLIQ.mini is now connected to Wi-Fi.

      c. Note: If the LED does not change to solid blue, see “LED Display” or “Troubleshooting”.

      5. Reconnect your mobile device to your home’s Wi-Fi, and then re-open the Install Assist app.

      6. You can now use the app to add smart home devices. Refer to the Clare Controls Knowledge Base for information on supported devices.

      Note: A Fusion project must need to be created.

      Wall mount

      Once the CLIQ.mini is configured and connected to the home’s network, wall mount the CLIQ.mini.

      To wall mount the CLIQ.mini:

      1. Attach the mounting bracket to the gang box.

      2. Plug in the CLIQ.mini, and then slide it on to the mounting bracket.

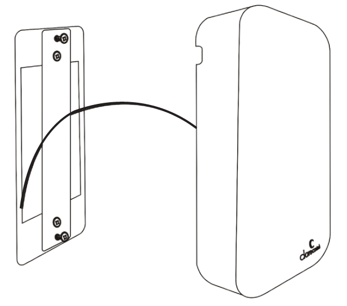

      Image 004

      LED Display

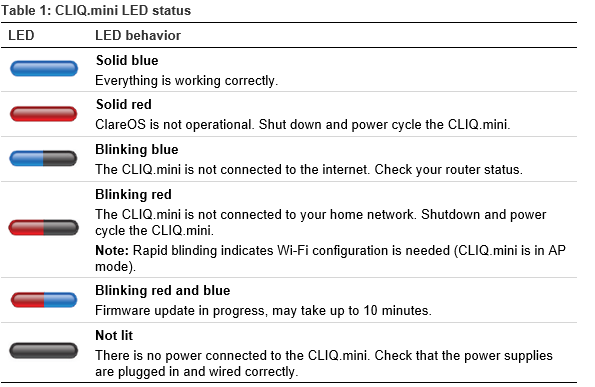

      The CLIQ.mini has an LED status indicator. Use the LED chart below to determine the CLIQ.mini’s status.

      Image 005

      Troubleshooting

      In certain states the CLIQ.mini must be reset or power cycled.

      Note: When the CLIQ.mini reboots, it can take up to 25 seconds to successfully restart in AP mode.

      To shutdown the CLIQ.mini:

      1. Slide the provided paper clip/reset tool into the recessed push button and hold down for 5 seconds.

      paper clip 1



      To shutdown and power cycle the CLIQ.mini in AP mode:

      1. Slide the provided paper clip/reset tool into the recessed push button and hold down for 20 seconds.

      paper clip 1

      Warranty Information

      Clare Controls offers a two (2) year limited warranty on original Clare Controls components, from the date of shipment form Clare Controls. To view complete limited warranty details, including limitations and exclusions, see www.clarecontrols.com/warranty.





      Full PDF - CLIQ.mini Quick Start Guide (DOC ID 1284)
