ClareVision Fixed Lens Turret Camera Mounting (Junction Box and Wall Bracket)

This article shows how to mount a ClareVision Fixed Lens Turret Camera to a Junction Box or Wall Bracket. Use the quick navigation menu below to jump to the section you need.

Supported Turret Cameras:

CLR-V100-2T36(W/B)

CLR-V100-4T36(W/B)

CLR-V200-4T28(W/B)

CLR-V200-8T28(W/B)

CLR-V300-4T28CN(W/B)

CLR-V300-8T28CN(W/B)

Supported Junction Boxes:

CLR-VACC-JBOX2(W/B)

Supported Wall Brackets:

CLR-VACC-WBKT2(W/B)

Mounting Turret Camera to Junction Box

1. Using the included alan key, unscrew the security set screw on the side of the camera to disconnect the camera from the mounting bracket.

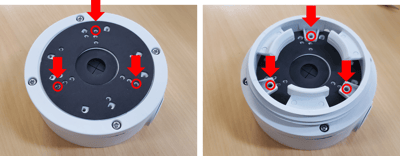

2. Align the mounting bracket with the three indicated holes on the Junction Box.


3. Using the included mounting screws that came with the Junction Box, screw in the mounting bracket to the Junction Box using the included alan key.

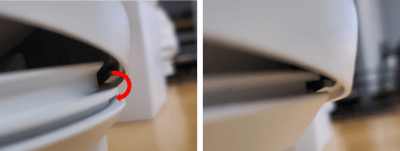

4. Re-mount the camera to the mounting bracket by aligning the lip and ridges on the opposite side of the security set screw.


5. Using the alan key, screw in the security set screw.


6. Done!

Mounting Turret Camera to Wall Bracket:

1. Using the included alan key, unscrew the security set screw on the side of the camera to disconnect the camera from the mounting bracket.

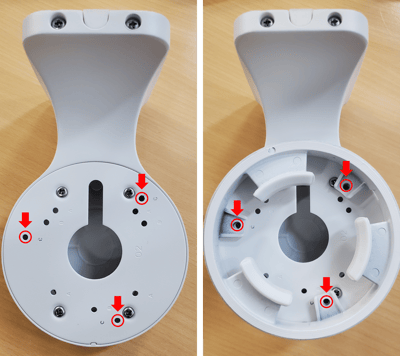

2. Align the mounting bracket with the three indicated holes marked "C" on the Wall Bracket.


3. Using the included mounting screws that came with the Wall Bracket, screw in the mounting bracket to the Wall Bracket.
4. Re-mount the camera to the mounting bracket by aligning the lip and ridges on the opposite side of the security set screw.


5. Using the alan key, screw in the security set screw to lock the camera in place..


6. Done!

Last Updated: 05/25/2022
