Clare Video Doorbell v2 Advanced Setup

The Clare Video Doorbell v2 can be used with ClareVision Plus (CVP) Network Video Recorders (NVRs) and Luma NVRs. See the sections below for setup.



CVP NVRs

The Clare Video Doorbell v2 is compatible with all ClareVision Plus (CVP) and Legacy ClareVision Network Video Recorders (NVRs). Follow the steps below to add the doorbell and start recording to an NVR.

Need to Know

General need to know information for using the CVD v2 with  CVP NVRs.

  • What??

Adding the doorbell to an NVR

The Clare Video Doorbell Camera must be added to an NVR to enable recording.

Note: We recommend using Internet Explorer in compatibility mode for NVR management.



To add the doorbell to a ClareVision Plus 16, 32, and 64 channel NVR:

  1. Browse to the NVR’s IP address.
  2. Login with the NVR’s credentials.
    Note: These credentials were created when the NVR was added using the ClareVision Plus App.
  3. Browse to Camera Management.
    Configuration > System > Camera Management

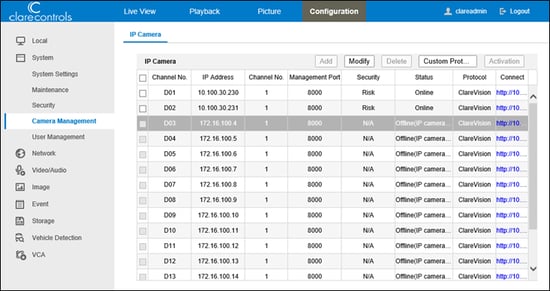

    16-32-64 channel 1
  4. Select the first available unused channel by clicking on the IP address.
  5. Click Modify.


    The IP camera configuration pop-up displays.

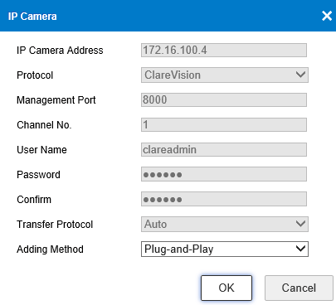

    16-32-64 IP pop-up
  6. Set the Adding Method to Manual, and then enter the doorbell camera’s IP address, User Name, and Password.

    Notes

    • Find the IP address of the camera using an IP scan tool like Fing, available for free on iOS and Android.
    • The default Username is clareadmin. The password was created when the doorbell camera was added with the ClareVision Plus App.
  7. Click OK.

    The doorbell camera is added and is now online.

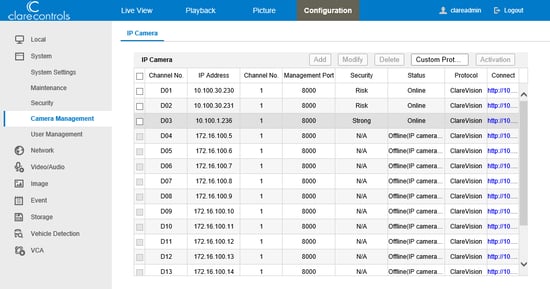

    16-32-~2
  8. Click the Live View tab, and then select the doorbell camera.
    The stream displays.

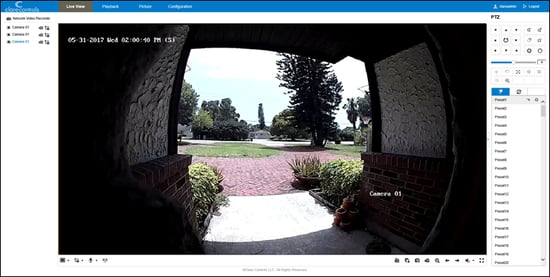

    new camera live view



To add the doorbell to a ClareVision Plus 4 and 8 channel, and Legacy ClareVision NVR:

  1. Browse to the NVR’s IP address.
  2. Login with the NVR’s credentials.
    Note: These credentials were created when the NVR was added using the ClareVision Plus App.

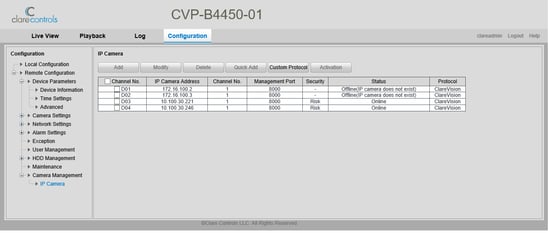

  3. Browse to IP Camera.
    Configuration > Remote Configuration > Camera Management > IP Camera

    4-8AND~3
  4. Select the first available unused channel by clicking on the IP address.
  5. Click Modify.

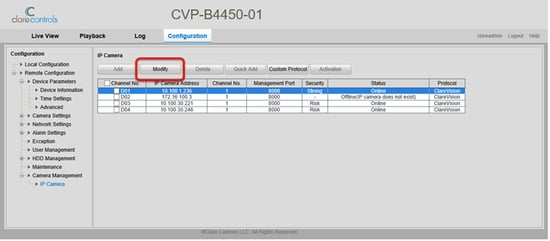

    modify 2

    The IP camera configuration screen displays.

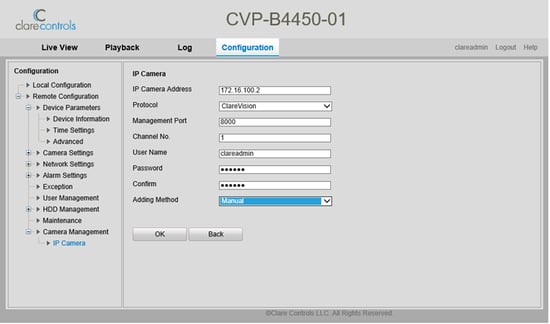

    4-8 and legacy -modify
  6. Set the Adding Method to Manual, and then enter the doorbell camera’s IP address, User Name, and Password.

    Notes

    • Find the IP address of the camera using an IP scan tool like Fing, available for free on iOS and Android.
    • The default Username is clareadmin. The password was created when the doorbell camera was added with the ClareVision Plus App.
  7. Click OK.

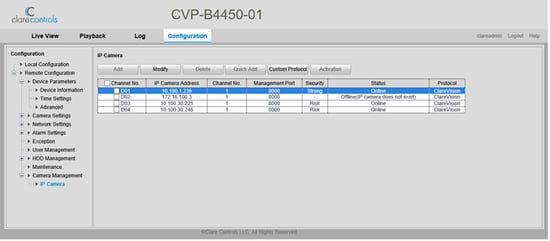

    4-8 and legacy -online

    The doorbell camera is added and is now online.
  8. Click the Live View tab, and then select the doorbell camera.
    The stream displays.

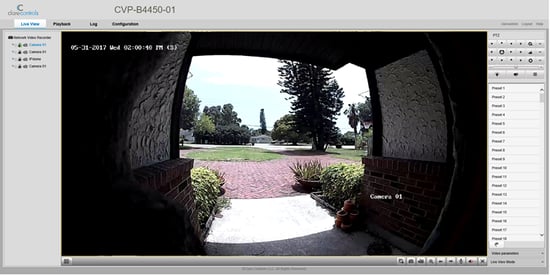

legacy live view 1





Full PDF - Using a Clare Video Doorbell with a ClareVision+ or Legacy NVR Product Bulletin (Doc ID 1598)



Luma NVRs

This section walks a user through the process of using a ClareVision Doorbell v2 with Luma Network Video Recorders (NVRs).

Need to Know

General need to know information for using the CVD v2 with  Luma NVRs.

  • The Luma Utility app is a Windows only app.

    Clare Video Doorbell v2

    Note: The CVD – v2 is currently available in the Snap One store.

    Follow the instructions below to use the CVD v2 with a Luma NVR.

    To use the CVD – v2 with Luma NVRs:

        1. Log in to the Luma NVR using a web browser. See Luma documentation for accessing a Luma NVR using a web browser.
        2. Click Settings (double cog icon) in the side-menu.
        3. Click Camera Management, and then click on the row of an unused camera channel - selecting the row.
        4. Click Modify in the top row of the cameras table.
        5. Configure the IP camera options dialog to match the below settings.

          Adding Method: Manual

          Protocol: LUMA

          Management Port: 8000

          User Name: clareadmin

          IP address: CVD’s IP address

          Note: We recommend using a DHCP reservation in the router to prevent a change in the CVD IP address. If the CVD obtains a new IP address, it breaks the network connection with the NVR.

          Password: Enter the desired password and confirm

          Note: If the CVD is configured on the same network as an existing ClareHome controller, the password is automatically set to Secure7519. If there is no ClareHome controller, the password is manually configured by the installer.

        6. Click OK to save.
          Note: Alarm notifications in the app do not have to be enabled for the NVR to get motion events.



    Full PDF - Using ClareVision Doorbells with Luma NVRs Tech Bulletin (DOC ID 1920)
