August Smart Lock Pro Integration Release Notes

Preface

For information on Z-Wave and ClareHome, see Installing Z-Wave with ClareHome.

Notes

  • When installing Z-Wave devices, ensure that there is nothing inhibiting their signal. Z-Wave relies on radio signals. Metal or thick walls may limit their signal strength.
  • We recommend having 2 or more repeating Z-Wave devices that support beaming.

Introduction

The August Smart Lock Pro is a Z-Wave door lock. The August door lock works with your existing door lock, allowing it to be controlled via Z-Wave. The lock integrates with ClareHome via the Z-Wave network. Installers only need to pair (add) the unit into the ClareHome. The locks provide real time lock status indications.

By integrating the lock into the ClareHome control system, your customers can control the door lock from their Android or iOS devices.

Note: The August Smart Lock Pro does not support PIN codes.

Installing and programming the August Smart Lock Pro

Only qualified installation technicians should install August Smart Door Lock. Follow the installation and programming instructions that came with your August equipment. We recommend that you pair the lock with the ClareHome Z-Wave controller before installing it in the door.

Notes

  • You must be within 6 feet of the controller for the lock to pair.
  • The door lock is configurable using the ClareHome app, the Clare Controls Install Assist app, and Fusion.
  • The August Home app is required to install and pair the August Smart Lock Pro.

Pairing and removing the August Smart Lock Pro

After installing the door lock, pair it. We recommend pairing the August lock using Fusion.

Notes

  • The August app images included in this document are subject to change at any time.
  • The August Smart Lock does not support PIN codes.
  • Refer to the August Home app for connection instructions for the August Smart Lock Pro.

To pair the door lock with Fusion:

  1. Access your project, and then click the Z-Wave Wizard icon.

    August 001
  2. Click on Z-Wave Devices.

    August 002
  3. Select the device’s location, and then enter a name for the device.

    Notes

    • We recommend naming the device after its location to avoid confusion. For example, Entryway Door Lock.

    August 003

    • If you want to add an area, click the green plus icon , enter a name for the area, and then click Add Area.
    August 004
  4. Click Add It!.
    The Z-Wave adding mode dialog displays.

    August 005
  5. Access the August Home app on a mobile device, and then tap the August door lock.

    August 021
  6. Scroll to view Z-Wave Settings, and then tap Z-Wave Settings.

    August 022
  7. Tap ADD TO A Z-WAVE NETWORK.

    August 023
  8. Tap MY HUB IS IN INCLUSION MODE.

    August 024

    The device door lock enters pairing mode.

    August 025
  9. Return to Fusion.
    The door lock appears in in the added devices list.

    August 011
  10. Click the Summary tab to view all Z-Wave Wizard added devices and their status.

    August 012
  11. Click the Close Window icon in the top-right of the wizard to exit and return to the Devices tab.

    To remove the door lock with Fusion:

    1. Access your project, and then click the Z-Wave Wizard icon.

      August 001
    2. Click on Unpair a Device.

      August 014
    3. Click Continue.

      August 015
    4. Access the August Home app on a mobile device, and then tap the August door lock.

      August 021
    5. Scroll to view Z-Wave Settings, and then tap Z-Wave Settings.

      August 022
    6. Tap REMOVE Z-WAVE DEVICE.

      August 033
    7. Tap MY HUB IS IN LEARN MODE.

      August 019
      The device door lock enters removal mode.

      August 035
      The door is removed from the devices list.

    To pair the door lock using ClareHome or Install Assist:

    Note: Verify that you are on the correct network and can quickly access the ClareHome project.

    1. Access the August Home app on a mobile device, and then tap the August door lock.

      August 021
    2. Scroll to view Z-Wave Settings, and then tap Z-Wave Settings.

      August 022
    3. Tap ADD TO A Z-WAVE NETWORK.

      August 023
    4. Tap MY HUB IS IN INCLUSION MODE.

      August 024
      The device door lock enters pairing mode.

      August 025
    5. Access the Clare Controls Install Assist app, and then tap Add Devices.

      August 026
      – or –
      Access the ClareHome Menu, and then tap Add/Edit Devices.

      August 027
    6. At the bottom of the screen, tap the plus icon.

      August 028
    7. Tap Access.

      August 029
    8. Tap Z-Wave Device - Access.

      August 030
    9. Tap Start Discovery Mode, and then pair the device as per the manufacturer’s instructions.

      August 031
    10. Enter a name for the door lock, and then select an area.

      August 032
    11. Tap outside of the area drop-down and the door lock automatically saves.

      Note: For scene, schedule, notification, and automation configuration, see ClareHome App Guide (DOC ID 1750).

      To remove the door lock using ClareHome or Install Assist:

      1. Access the August Home app on a mobile device, and then tap the August door lock.

        August 021
      2. Scroll to view Z-Wave Settings, and then tap Z-Wave Settings.

        August 022
      3. Tap REMOVE Z-WAVE DEVICE.

        August 033
      4. Tap MY HUB IS IN LEARN MODE.

        August 034

        The device door lock enters removal mode.

        August 035
      5. Access the Clare Controls Install Assist app, and then tap Add Devices.

        August 026
        – or –

        Access the ClareHome menu, and then tap Add/Edit Devices.

        August 027
      6. Tap the dots in the upper-right corner.

        August 036
      7. Tap Unpair Z-Wave Device.

        August 037
      8. Tap Start Removal Mode, and then remove the device as per the manufacturer’s instructions.

        August 038

      Creating rules with the August Smart Lock Pro in Fusion

      Configure a rule for the August Smart Lock.

      The following example sets a locked detection rule. When the door lock detects it has been locked, the homeowner is alerted with an email.

      To create the door lock rule in Fusion:

      1. Access your project, and then click the Rules tab.

        August 039
      2. Click the New Rule button.
      3. Enter a name for the rule, and then select the Enable Rule checkbox.

        August 040
      4. Configure the Event Part as below.
        Note: This release of the August Smart Lock door locks only supports the Lock/Unlock device.
        • Event Type: Device Property Change Event
          Note: The Device Property Change Event replaced the Device Property Value Event.
        • Device: August Door Lock, Lock/Unlock
        • Function: Door Lock
        • Property: State
        • Constraint: =
        • Value: Detected

          August 041
      5. Configure the Action part as below.

        • Action Type: Send Email
        • Recipients: The homeowner’s Email address

          Note: To add an Email address, you must click the green plus icon . Do this for each desired Email recipient.
        • Subject: The purpose of the alarm
        • Text: The information included in the email
        August 042
      6. Click the Save button, and then deploy the project.

                Rule options for the August Smart Lock

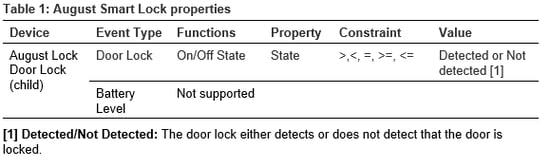

                When creating rules for the August Smart Lock, consult the below table to better understand the options available.

                august table

                Using the door lock in the ClareHome app

                Once deployed, the user can add the device to their space, and then tap the door icon in the ClareHome app to display and operate the door lock’s controls, as shown below.

                Figure 1: Locked and unlocked August Smart Lock display

                August 043





                Full PDF - August Smart Lock Integration Release Notes (DOC ID 1879)
